UAP_BaseElement Class Reference

This is the base for all accessibility UI components. Use this to set values directly. More...

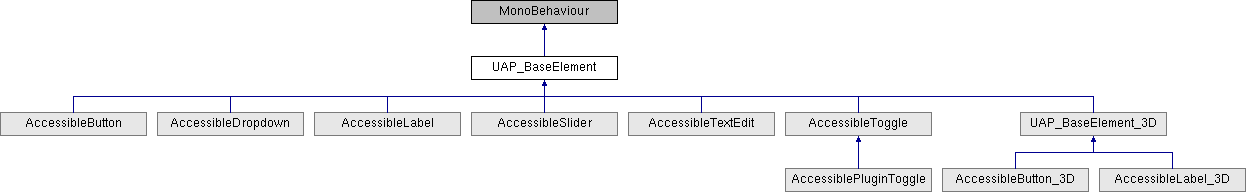

Inheritance diagram for UAP_BaseElement:

Classes
class	UAPBoolCallback
class	UAPHighlightCallback

Public Types
enum	EHighlightSource { Internal = 0, UserInput, TouchExplore }

Public Member Functions
void	Initialize ()
void	SetAsStartItem ()
virtual bool	Is3DElement ()
	Whether this is a 3D object (actual 3D, not on a UI canvas or NGUI root) More...
virtual bool	AutoFillTextLabel ()
virtual bool	IsInteractable ()
void	Interact ()
void	InteractEnd ()
void	InteractAbort ()
string	GetTextToRead ()
void	SetCustomText (string itemText)
	Convenience function to set the text on this element manually and disable the automatic label reading at the same time Text is expected to be localized (if applicable). This function will disable the setting treating the text as a localization key More...
virtual string	GetCurrentValueAsText ()
virtual AudioClip	GetCurrentValueAsAudio ()
virtual bool	IsElementActive ()
bool	SelectItem (bool forceRepeatItem=false)
	Call this function to force select this UI element. By default, if the element is already selected before this function was called, the element is not read out aloud again. If you want to force the repetition, pass true as a parameter. More...
virtual bool	Increment ()
virtual bool	Decrement ()
virtual void	HoverHighlight (bool enable, EHighlightSource selectionSource)
GameObject	GetTargetGameObject ()
bool	IsNameLocalizationKey ()
string	GetCustomHint ()
void	SetCustomHintText (string hintText, bool isLocalizationKey=false)
	Sets a custom hint text for this UI element, overriding the default text. The purpose of this text is to tell the player how to use the UI element, and give additional information as to what the element does. Most of the time, changing this is NOT needed. A default hint for a button (on mobile) would for example be 'Double tap to activate'. It might makes sense to change this to 'Double tap to sell this inventory item' Only interactive UI elements support hint texts. More...
void	ResetHintText ()

Static Public Member Functions
static string	FilterText (string text)

Public Attributes
UnityEvent	m_OnInteractionStart = new UnityEvent()
UnityEvent	m_OnInteractionEnd = new UnityEvent()
UnityEvent	m_OnInteractionAbort = new UnityEvent()
bool	m_ForceStartHere = false
int	m_ManualPositionOrder = -1
GameObject	m_ManualPositionParent = null
bool	m_UseTargetForOutline = false
int	m_PositionOrder = 0
int	m_SecondaryOrder = 0
Vector2	m_Pos = new Vector2(0, 0)
AudioClip	m_TextAsAudio = null
string	m_Prefix = ""
bool	m_PrefixIsLocalizationKey = false
bool	m_PrefixIsPostFix = false
bool	m_FilterText = true
	Only relevant if this is not a combination string.
string	m_Text = ""
	This will remove formatting from text, for example or [#FF3C3C] and [-]. More...
GameObject	m_NameLabel = null
	Label that contains the name or description of the edit box. Use this to directly read localized content. More...
List< GameObject >	m_AdditionalNameLabels = null
GameObject[]	m_TestList = null
bool	m_IsLocalizationKey = false
	Uses the text inside m_NameLabel and requests translation. More...
bool	m_TryToReadLabel = true
	Only works if there is a text label component either on this GameObject or set as a reference.
GameObject	m_ReferenceElement = null
	Only set this if the accessibility component doesn't sit on the same GameObject.
bool	m_AllowVoiceOver = true
	In very specific circumstances it can make sense to deliberately prevent using VoiceOver from speaking this element.
bool	m_ReadType = true
	In very specific circumstances you might want to suppress the reading of the type.
bool	m_WasJustAdded = true
AccessibleUIGroupRoot.EUIElement	m_Type = AccessibleUIGroupRoot.EUIElement.EUndefined
bool	m_CustomHint = false
AudioClip	m_HintAsAudio = null
string	m_Hint = ""
bool	m_HintIsLocalizationKey = false
bool	m_IsInsideScrollView = false
bool	m_IsInitialized = false
UAPHighlightCallback	m_CallbackOnHighlight = new UAPHighlightCallback()

Protected Member Functions
virtual void	AutoInitialize ()
	Do not call this function directly, use Initialize() instead. More...
virtual void	OnInteract ()
virtual void	OnInteractEnd ()
virtual void	OnInteractAbort ()
	End the interaction but - if it makes sense - restore previous value.
string	CombinePrefix (string text)
virtual string	GetMainText ()
virtual void	OnHoverHighlight (bool enable)
string	GetTextFromTextMeshPro (Component textMeshProLabel)
virtual string	GetLabelText (GameObject go)
Component	GetTextMeshProLabelInChildren ()

Detailed Description

This is the base for all accessibility UI components. Use this to set values directly.

Member Function Documentation

virtual void UAP_BaseElement.AutoInitialize ( )

protectedvirtual

Do not call this function directly, use Initialize() instead.

Reimplemented in AccessibleToggle, AccessibleButton, and AccessibleLabel.

virtual bool UAP_BaseElement.Is3DElement ( )

virtual

Whether this is a 3D object (actual 3D, not on a UI canvas or NGUI root)

Returns

Reimplemented in UAP_BaseElement_3D.

bool UAP_BaseElement.SelectItem

(

bool

forceRepeatItem = false

)

Call this function to force select this UI element. By default, if the element is already selected before this function was called, the element is not read out aloud again. If you want to force the repetition, pass true as a parameter.

Parameters

forceRepeatItem

If true, the item will be read aloud again even if it was already selected. Has no effect if the item wasn't selected prior to this function call.

void UAP_BaseElement.SetCustomHintText	(	string	hintText,
		bool	isLocalizationKey = false
	)

Sets a custom hint text for this UI element, overriding the default text. The purpose of this text is to tell the player how to use the UI element, and give additional information as to what the element does. Most of the time, changing this is NOT needed. A default hint for a button (on mobile) would for example be 'Double tap to activate'. It might makes sense to change this to 'Double tap to sell this inventory item' Only interactive UI elements support hint texts.

Returns

void UAP_BaseElement.SetCustomText

(

string

itemText

)

Convenience function to set the text on this element manually and disable the automatic label reading at the same time Text is expected to be localized (if applicable). This function will disable the setting treating the text as a localization key

Parameters

itemText

Member Data Documentation

bool UAP_BaseElement.m_IsLocalizationKey = false

Uses the text inside m_NameLabel and requests translation.

GameObject UAP_BaseElement.m_NameLabel = null

Label that contains the name or description of the edit box. Use this to directly read localized content.

string UAP_BaseElement.m_Text = ""

This will remove formatting from text, for example or [#FF3C3C] and [-].

This variable contains the text that will be read aloud if this UI element receives focus. This variable will only be used if the plugin is not reading text directly from a text label.

---

The documentation for this class was generated from the following file:

• D:/Dev/P4/Projects/UnityAccessibilityPlugin/UnityAccessibilityPlugin/Assets/UAP/Scripts/Core/UAP_BaseElement.cs
